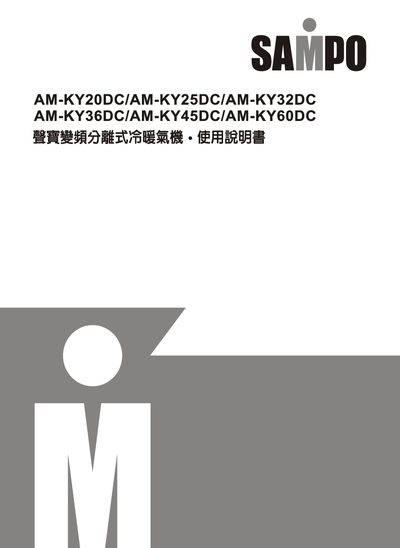

Sampo AM-KY20DC/AM-KY25DC/AM-KY32DC/AM-KY36DC/AM-KY45DC/AM-KY60DC Air Conditioner User Manual

About this manual

The manual begins with safety regulations and precautions to follow before using the air‑conditioner, including proper grounding, power supply requirements, and environmental limits. It then details the installation process, piping connections, and electrical wiring for both indoor and outdoor units.

Subsequent sections describe the functions of the LCD remote controller, temperature and timer settings, sleep mode, wind direction adjustments, and troubleshooting. A full specifications table lists dimensions, power ratings, and voltage for each model. This manual is written in Chinese.

What's inside

• Safety Guidelines
• Precautions Before Use
• Component Names and Functions
• LCD Remote Control Overview
• Power On and Temperature Setting
• Room and Heating Mode Operation
• Timer Functions
• Sleep Mode
• Direction Adjustment
• Installation and Piping

Specifications

Frequently asked questions

What are the maximum operating temperatures for indoor and outdoor use?

The outdoor unit can operate up to 43 °C (minimum 21 °C) and the indoor unit up to 32 °C (minimum 21 °C).

How can I set the timer for automatic on/off?

Use the timer function on the remote; press the timer button to set automatic power‑on or power‑off times.
