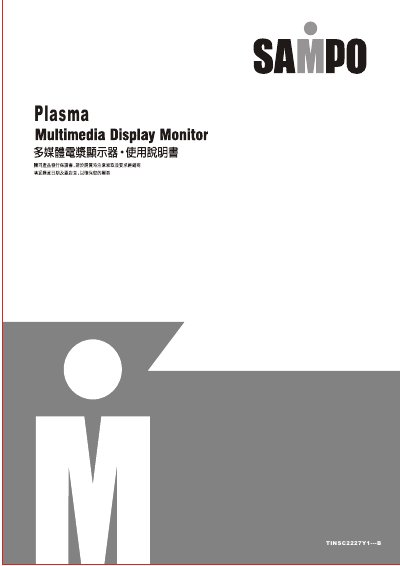

This manual explains how to safely install, connect, and operate the Sampo 2227Y1 multimedia plasma display. It includes warnings about pressure on the panel, proper power usage, and steps for mounting the unit on a wall or desk.
Detailed sections cover basic operation such as power on/off, volume control, input‑signal selection, picture‑adjustment modes, and troubleshooting. Specification tables list display size, resolution, power consumption, and optional accessories like wall‑mount brackets. This manual is written in Chinese.
| Model Name | 2227Y1 |
|---|---|
| Display Size (mm) | 920.16 (H) x 518.40 (V) |
| Aspect Ratio | 16:9 |
| Resolution | 1024×768 |
| Input Voltage | AC 100‑240V, 50/60 Hz |
| Maximum Power Consumption | 350 W |
| Weight (with stand) | 39 kg |
| Speaker Output | 10 W × 2 |
The display operates on AC 100‑240 V, 50/60 Hz. Use the supplied power cord and a dedicated outlet.
Yes, but keep at least 10 cm clearance behind the wall for heat dissipation and use the optional wall‑mount bracket.
