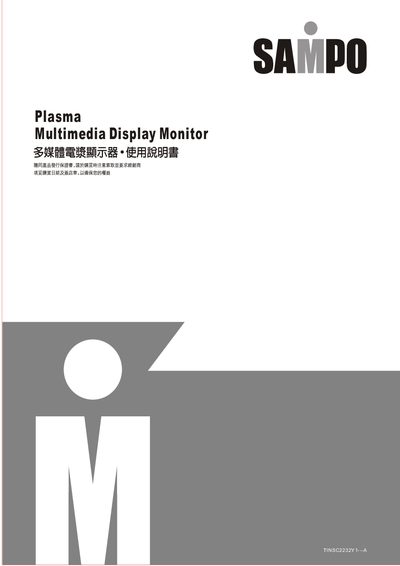

This manual covers safety precautions, unpacking, and installation of the Sampo WTPS068IS multimedia plasma monitor. It explains the front and rear panel indicators, power button functions, and how to select input sources such as RGB, HDMI, and RS‑232.
The guide also details basic operation like volume adjustment, menu navigation, image settings, and troubleshooting. A full specification table and optional wall‑mount dimensions are included at the end of the document. This manual is written in Chinese.
| Model Name | WTPS068IS |
|---|---|
| Display Size | 1106.46 mm (H) × 662.08 mm (W) |
| Aspect Ratio | 16:9 |
| Resolution | 1366 × 768 |
| Horizontal Frequency | 31–48 kHz |
| Vertical Frequency | 60–70 kHz |
| Inputs | RGB (D‑type) ×1, HDMI ×1, Audio (RCA) ×2, RS‑232 ×1 |
| Speaker Output | 10 W ×2 |
| Rated Current | 4.5 A |
| Power Consumption (Standby) | 3.5 W |
| Power Consumption (Max) | 480 W |
| Weight (with stand) | 37.5 kg |
Press and hold the VOL key to increase the volume, or press and hold the VOL‑‑ key to decrease it.
Immediately unplug the power cord and contact a service center for inspection.
