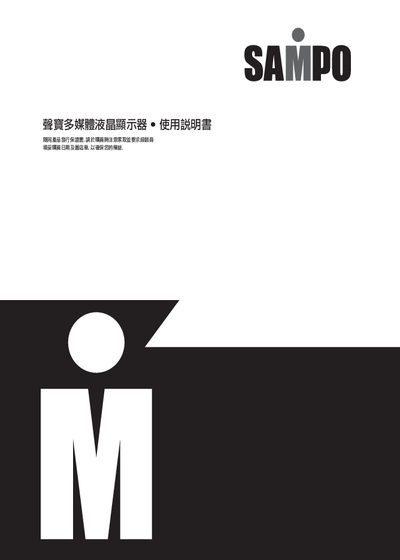

LM-23U1/LM-26U1 Multimedia LCD User Manual

The document contains a detailed description of one product, including its appearance, performance, and features.

Brand: Sampo
Category: Monitor
Document type: User Manual
Language: Japanese
Pages: 44
File format: PDF
File size: 2.9 MB
Published: 19 March, 2012
Updated: 29 September, 2023
MD5 checksum: 6443446E2FEA1BEA7454EBF51EE05F6E
PDF: LM-23U1/LM-26U1 Multimedia LCD User Manual PDF

About this manual

This manual provides safety instructions and general usage guidelines for the multimedia LCD display. It explains precautions such as using the correct AC 110 V 60 Hz power source, avoiding over‑current (12 A max), and contacting the service center for any issues.

The guide also describes how to connect video sources (VGA, DVD, HDTV, VCR), select accessories, and perform basic setup. It includes information on mounting, ventilation, and where to obtain compatible accessories. This manual is written in Japanese.

What's inside

Safety Instructions
Installation Guidelines
Connecting Sources
Accessories
Support Information

Specifications

Power Supply	AC 110 V 60 Hz
Maximum Current	12 A

Frequently asked questions

What power source should be used?

The device requires an AC 110 V, 60 Hz power source.

What is the maximum allowable current?

Do not exceed a current of 12 A.

Who should I contact for technical support?

Call the service line at 0800‑005438 for assistance.
