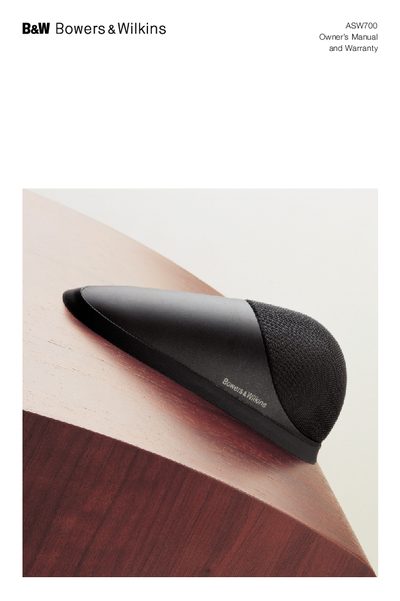

ASW700 Owner’s Manual and Warranty
This Owner’s Manual covers the warranty, safety warnings, unpacking, and positioning guidelines for the B&W ASW700 active subwoofer. It explains how to install the unit, connect it to your audio system, and configure the controls for optimal performance.
Key sections include detailed safety instructions, wiring diagrams, control settings, fine‑tuning tips, and troubleshooting advice, helping you achieve the best bass response in home‑theatre or 2‑channel audio setups.
| Mains voltage range | 100 V – 230 V AC |
|---|---|
| Power‑supply cord protection | Use correct type and rating of fuse |
| Mounting feet supplied | Four spike feet (optional four rubber feet) |
| Power input | Power input socket on rear panel |
The warranty is valid for five years from the date of purchase for the subwoofer, and two years for electronics such as amplified loudspeakers.
Replace the damaged cord or plug with a new one that matches the correct type and rating, and have a qualified technician perform the repair.
Set the VOLUME control halfway, the LOW‑PASS FREQUENCY control to 80 Hz, the LOW‑PASS FILTER switch to IN, the EQ switch to position A, and the PHASE switch to 0°.
Yes, the subwoofer can be used with a THX® controller; enable the subwoofer function on the controller and follow its calibration procedures.
