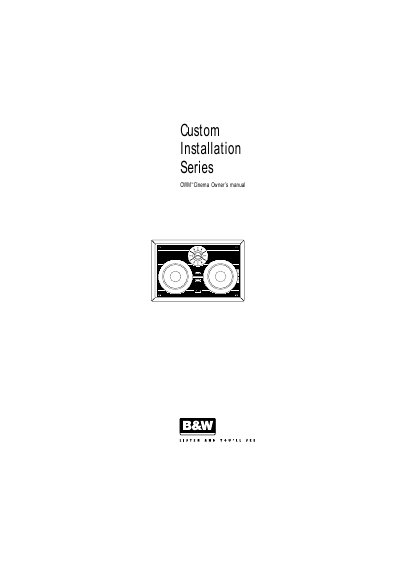

This manual is the user manual for B&W Custom Wall Mount (CWM™) speakers. It introduces the features and characteristics of the product and provides installation instructions
This manual guides owners of B&W CWM™ Cinema speakers through unpacking, wall‑frame fitting, and final setup. It explains the philosophy behind the product and stresses the importance of careful planning to achieve optimal sound performance.
Key sections cover positioning for new construction or retrofit, the Tilt Axis control for off‑axis listening, cavity damping, wiring connections, and optional accessories such as IR sensors. Safety notes and finish‑customising instructions are also included.
| Recommended cavity volume | above 15 L (0.5 cu ft) |
|---|---|
| Tilt Axis angle | ≈ 10° up or down |
Keep each speaker at least 0.5 m (20 in) from wall edges, avoid corners, and mount them in half‑space (flush in a wall or soffit).
Connect the red (+) terminal to the amplifier’s positive terminal and the black (–) terminal to the negative terminal, with the equipment switched off.
Use a foam pad supplied with the speaker and fill the cavity with non‑closed‑cell insulation such as fiberglass or mineral wool.
