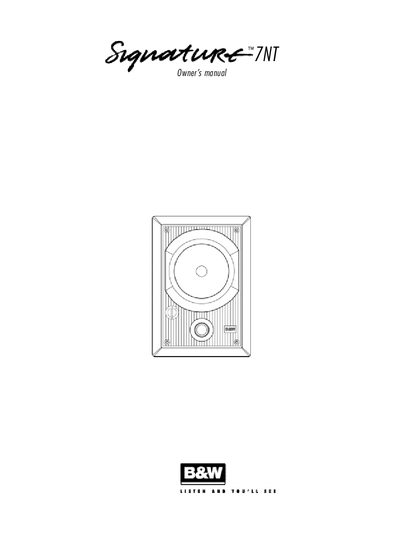

This manual is the user manual for 7NT Signature speakers, which introduces the characteristics and installation methods of the speakers.
This manual explains how to install and set up the Bowers & Wilkins Signature 7NT custom wall‑mount speakers. It covers unpacking, recommended cavity volume, positioning guidelines, wall‑frame fitting, wiring, and high‑frequency control.
Key sections include unpacking the components, choosing portrait or landscape orientation, preparing the wall cavity, mounting the frame (new construction or retrofit), customizing the finish, connecting the speaker terminals, and adjusting the HF control switch. Safety warnings such as keeping the speakers away from magnetic‑sensitive equipment are also included.
| Recommended cavity volume | above 15 L (0.5 cu ft) |
|---|
Place the speakers at ear height, at least 1.5 m (5 ft) from the listener, and arrange them so the listener and the two speakers form an equilateral triangle.
Keep the speakers at least 0.5 m (20 in) away from equipment that can be affected by magnetic fields, such as CRT televisions or computers.
