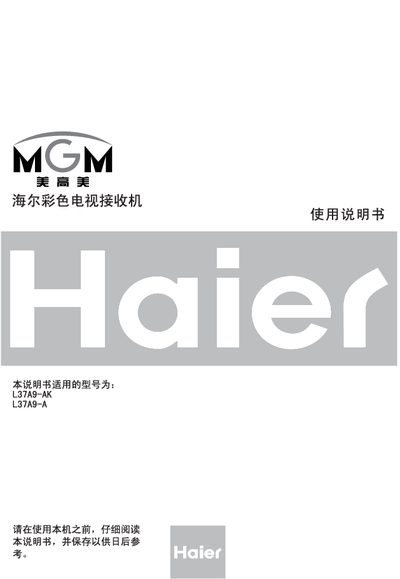

L37A9-AK Color TV User Manual

A remote control for a TV

Brand: Haier
Category: Television
Document type: User Manual
Language: English
Pages: 48
File format: PDF
File size: 18.7 MB
Published: 16 March, 2012
Updated: 30 September, 2023
MD5 checksum: 2165B365F63DC60156DA0C43FCAEDFBE
PDF: L37A9-AK Color TV User Manual PDF

About this manual

This manual provides safety information for the L37A9-AK television, including a caution about electric shock and instructions not to open the unit. It lists the power requirements and the locations of the main control buttons such as POWER, MENU, VIDEO, AUDIO, and volume controls.

The document details the available audio and video connectors, including RCA video, S‑Video, D‑SUB, DVI, HDMI, USB, and speaker outputs. It also specifies the supported video standards (PAL/NTSC) and the electrical characteristics of the inputs and outputs.

What's inside

Safety Warnings
Power Requirements
Control Buttons
Audio/Video Input Connectors
Supported Video Standards

Specifications

Input Voltage	110 V‑240 V 50/60 Hz
Video Input (RCA)	1.0 V‑p‑p (75 Ω)
Audio Input (L‑R RCA)	0.5 V rms
Supported Video Standards	PAL, NTSC

Frequently asked questions

What voltage range does the TV accept?

The TV operates on an input voltage of 110 V to 240 V at 50/60 Hz.

What audio inputs are available?

Audio can be connected via left‑right RCA jacks (0.5 V rms) or a 3.5 mm stereo jack.
