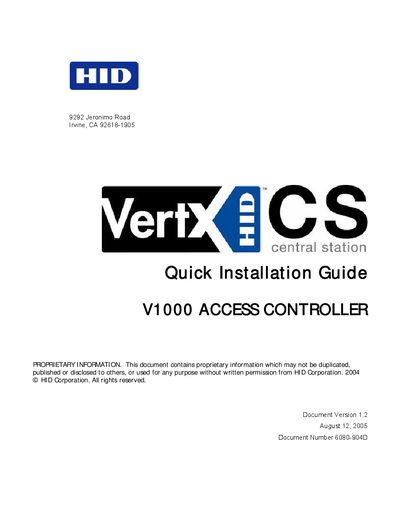

This document is a V1000 product installation guide that introduces product installation and configuration methods.
The Quick Installation Guide walks installers through the preparation, hardware mounting, wiring, and communication setup required for the HID VertX V1000 access controller. It includes safety cautions, a parts list, and a checklist to ensure all components such as the battery, termination jumpers, and cables are ready before starting.
Installation steps cover mounting the controller, connecting power, RS‑485 and RS‑232 interfaces, Ethernet networking, and configuring the controller to communicate with a central‑station automation system. The guide also provides wiring diagrams, pin‑out tables, and an installation worksheet for recording system settings.
| Power Supply Voltage | 12‑16 VDC |
|---|---|
| Maximum Current at 12 VDC | 1 Amp |
| Average Operating Current at 12 VDC | 200 mA |
| Operating Temperature Range | 32°‑122 °F (0°‑50 °C) |
| Humidity Range | 5 %‑95 % non‑condensing |
The V1000 operates from a 12‑16 VDC power supply.
Up to 32 interface panels (V100, V200, V300) can be connected to the V1000.
RS‑485 uses Belden 3105A, 22 AWG twisted‑pair shielded cable, up to 4000 ft long.
The V1000 draws a maximum of 1 Amp at 12 VDC.
