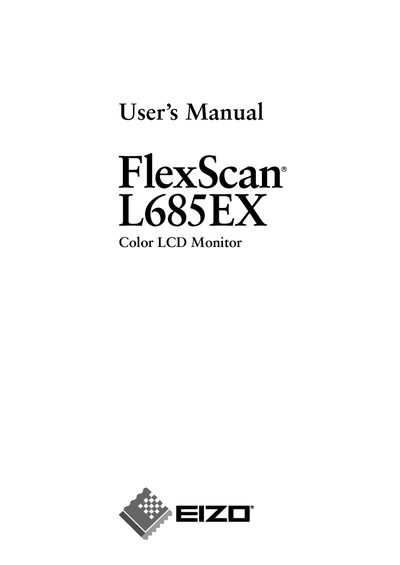

EIZO FlexScan L685EX Monitor User Manual

EIZO NANAO CORPORATION Color LCD Monitor User's Manual

Brand: EIZO
Category: Monitor
Document type: User Manual
Language: English
Pages: 54
File format: PDF
File size: 1.1 MB
Published: 16 March, 2012
Updated: 30 September, 2023
MD5 checksum: C1A4D3851AC3CDCA947667E103C0E1C9
PDF: EIZO FlexScan L685EX Monitor User Manual PDF

About this manual

This manual covers safety symbols, precautions, and proper handling of the FlexScan L685EX LCD monitor. It includes detailed instructions for cable connections, using ScreenManager, adjustment settings, USB usage, and attaching an arm stand.

Additional sections provide troubleshooting tips, cleaning guidelines, full technical specifications, and a glossary of terms. Compliance information for FCC and Canadian regulations is also included.

What's inside

Introduction
Cable Connection
ScreenManager
Adjustment
USB
Arm Stand
Troubleshooting
Cleaning
Specifications
Glossary

Specifications

Model	FlexScan L685
Input Voltage	100‑120 V / 200‑240 V ~ 50/60 Hz
Resolution	1280 × 1024 pixels
Refresh Rate	75 Hz (non‑interlaced)
Analog Video Input	RGB, 0.7 Vp‑p

Frequently asked questions

How must the monitor be connected to the power outlet?

Connect the monitor to a grounded main outlet using the supplied power cord and ensure the voltage matches the rating.

Can I place the monitor in a dusty or humid environment?

No, the manual advises against installing the unit in dusty or humid locations.
