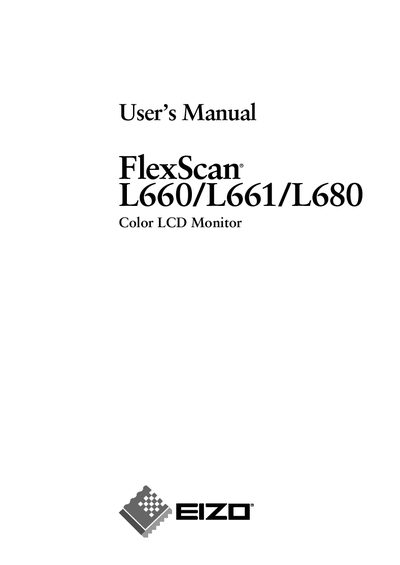

This manual provides detailed instructions on how to use the EIZO NANAO COLOR LCD Monitor 2.
This manual introduces the FlexScan L660/L661/L680 LCD monitor, outlines safety precautions, and lists the package contents and control connectors. It emphasizes proper grounding, power‑cord usage, and handling warnings to prevent electric shock or fire.
The guide covers installation steps, PC settings, and how to use the ScreenManager for screen, color, and power‑save adjustments. Additional sections describe USB usage, cleaning, specifications, and troubleshooting procedures for common issues.
| Resolution | 1280 x 1024 |
|---|---|
| Refresh Rate | ≥ 75 Hz (non‑interlaced) |
| Analog RGB Voltage | 0.7 V p‑p |
| Power‑cord rating (US/Canada) | 125 V, 10 A |
| Power‑cord length (US/Canada) | max. 2.0 m |
| Power‑cord type (US/Canada) | SVT, NEMA 5‑159 plug |
