The document describes a TV product with 220V 50 60Hz, which has multiple functions and features, including channel selection and color tone adjustment.

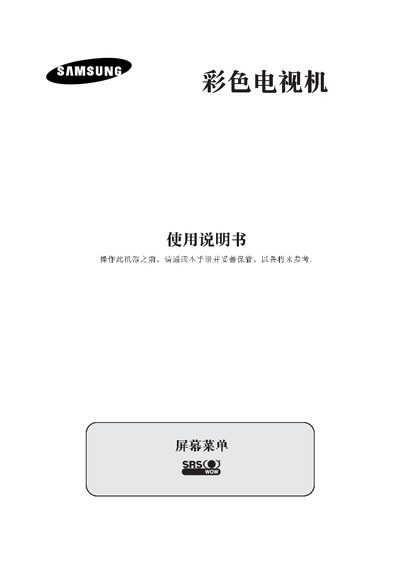

This manual explains safety guidelines, installation steps, remote‑control operation, front‑panel functions, and connection options for the Samsung CS29Z30 color television.
It also includes detailed product specifications, antenna and signal‑source setup instructions, and after‑sales service contact information. This manual is written in Chinese.
| Model Name | CS29Z30 |
|---|---|
| Display Ratio | 4:3 |
| Screen Size | 68 cm (29 in) |
| Color System | PAL, SECAM, NTSC |
| Audio System | BG, DK, IM |
| Audio Standard | NICAM Stereo, SRS |
| Audio Max Power Output | 10 W × 2 |
| Antenna Impedance | 75 Ω |
| Power Supply | 220 V, 50/60 Hz |
| Maximum Power Consumption | 160 W |
| Dimensions (W×H×D) | 796 × 421 × 593 mm |
| Weight | 42 kg |
| Interfaces | AV, video/audio input & output, monitor output |
Insert two AAA batteries, observing polarity: the “+” side of the battery matches the “+” marking on the remote, and the “‑” side matches the “‑” marking.
Do not expose the TV to extreme temperatures or humidity, keep it away from liquids, avoid overloading power sockets, unplug during lightning, and clean with a soft, non‑flammable cloth.
Use the remote control’s picture‑size button (选择画面尺才) to select the desired display mode.
