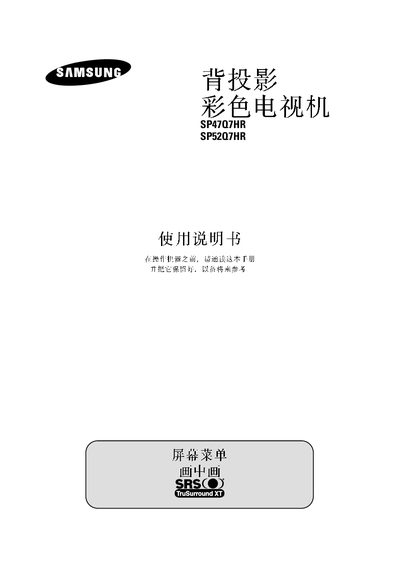

samsung SP47Q7HR SP52Q7HR back-projection color Television Manual

SP47Q7HR SP52Q7HR is a display product of Hisense brand, and their model numbers are SP47Q7HR and SP52Q7HR.

Brand: Samsung
Category: Television
Document type: User Manual
Language: Chinese
Pages: 52
File format: PDF
File size: 4.3 MB
Published: 15 March, 2012
Updated: 01 October, 2023
Models: SP47Q7HR, SP52Q7HR
MD5 checksum: A685CECBEEEC9AF961F4B43ED13EDC02
PDF: samsung SP47Q7HR SP52Q7HR back-projection color Television Manual PDF

About this manual

This manual covers safety precautions, front‑panel controls, and external input/output connections for Samsung SP4707HR and SP5207HR back‑projection televisions. It includes guidance on picture format settings such as 4:3 and 16:9, and explains the Digital Natural Image engine features.

Additional sections provide troubleshooting tips, warranty information, and regulatory compliance details. The document is intended for end‑users to set up and operate the TV safely and correctly. This manual is written in Chinese.

What's inside

Preface
Safety Instructions
Front Control Panel
External Input/Output Connectors
Picture Format Settings
Digital Natural Image Engine
Troubleshooting
Warranty and Regulatory Information

Specifications

Maximum picture size limit	15% of screen area
Image processing engine	Digital Natural Image engine (DNIe)

Frequently asked questions

Is there a limit on the picture size that can be displayed?

Yes, the picture size should not exceed 15% of the screen area.

What image processing technology is used in this TV?

It uses the Digital Natural Image engine (DNIe) for image processing.

Download PDF (4.3 MB)
