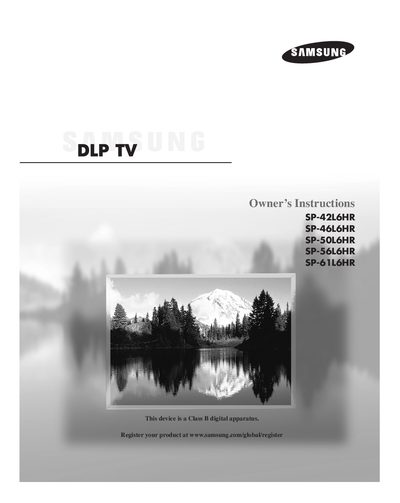

This document describes the features and characteristics of Samsung's SP-42L6HR, SP-46L6HR, SP-50L6HR, SP-56L6HR, and SP-61L6HR models.
This manual covers everything you need to set up and use the Samsung SP-42L6HR DLP TV, including connecting antennas, VCR/DVD players, HDMI devices, and using the remote control. It also explains the on‑screen menu system, picture and sound controls, and special features such as Picture‑in‑Picture and DNle technology.
Detailed sections guide you through lamp replacement, safety precautions, cleaning, and maintenance, as well as troubleshooting common issues. The specifications at the end list electrical requirements, dimensions, and weight for proper installation.
| Model | SP-42L6HR |
|---|---|
| Dimensions (W × D × H) | 999 × 331.3 × 755.5 mm |
| Weight | 28 kg |
Unplug the TV, remove the screws with a Phillips screwdriver, take off the lamp cover, unscrew the lamp, and pull it out by the handle. Reinstall by reversing these steps.
Use the correct code‑numbered lamp (BP96‑00826A), turn off power and wait 30 minutes before handling, avoid touching the glass with bare hands, and keep the old lamp away from flammable objects.
Connect the DVD player to the TV using the appropriate video/audio jacks or the HDMI interface as described in the connection section.
Place the TV at least 10 cm (4 in) from the wall for ventilation, keep it upright, avoid hot, cold, humid or dusty locations, and keep ventilation openings clear.
