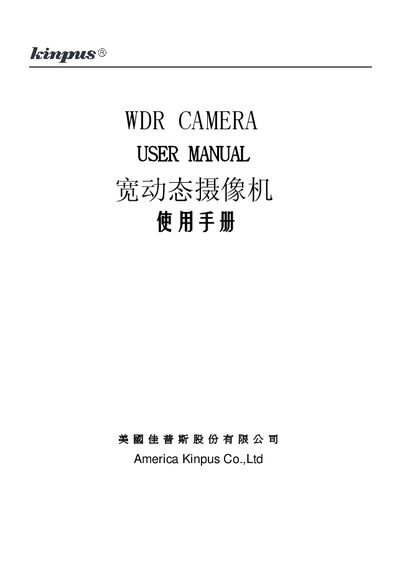

This manual provides instructions for installing, operating, and maintaining the Kinpus WDR camera. It includes safety precautions, menu navigation, and configuration of features such as wide dynamic range, digital zoom, and privacy masking.
The document also lists technical specifications, supported video standards, power requirements, and environmental limits, helping users set up the camera for optimal performance in various conditions. This manual is written in Chinese.
| Image sensor | 1/3" SGY DOUBLE SCAN CCD |
|---|---|
| Total pixels | 811(H) x 508(V) 795(H) x 596(V) |
| Effective pixels | 768(H) x 494(V) 752(H) x 582(V) |
| Horizontal resolution (color) | 560 TV lines |
| Horizontal resolution (black & white) | 700 TV lines |
| Power supply | DC12V ±10% or AC24V ±10% |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Power consumption | <2W (IR <5.5W) |
| Privacy mask zones | 8 zones |
The camera can operate from -10 °C to +50 °C.
Up to eight privacy mask zones can be set.
The camera accepts DC 12 V ±10 % or AC 24 V ±10 % input.
It supports NTSC and PAL video standards.
