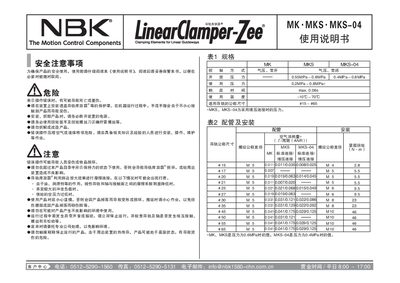

Instruction manual for NBK linear guide blocks MK, MKS, MKS-04
This manual provides safety precautions, installation instructions, and operating guidelines for the NBK MKS-04 pneumatic clamping element used on linear guideways. It explains proper handling, torque requirements, and the use of pressurized connection to achieve the required holding force.
The document also lists technical specifications such as control mode, pressure ranges, response time, operating temperature, and compatible guide‑rail sizes, helping users select and maintain the product correctly. This manual is written in Chinese.
| Control mode | pneumatic, normally open / pneumatic, normally closed |
|---|---|
| Opening pressure | 0.55 MPa – 0.8 MPa |
| Operating pressure | 0.2 MPa – 0.8 MPa |
| Response time | max. 0.06 s |
| Operating temperature | -10 °C to 70 °C |
| Applicable guide‑rail nominal size | #15 – #65 |
