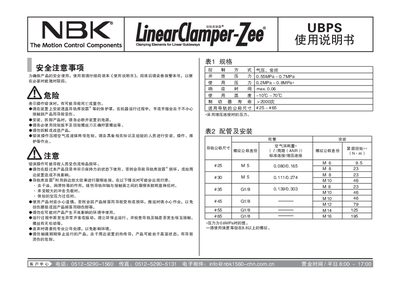

UBPS Air Cylinder Brake User Manual, introduces the product's function features, installation, use, maintenance and other precautions, as well as use precautions and safety warnings
This manual outlines safety precautions for the UBPS, including reading the instructions before use, disconnecting power during installation, using torque tools, and avoiding unauthorized modifications. It also warns of potential hazards such as injury from moving parts, improper pressure, and environmental factors.
Installation guidance covers standard and boosted (增压) connections, required pressures, torque specifications, and adjustment procedures. Technical specifications such as control mode, pressure ranges, response time, operating temperature, actuator life, and compatible guide rail sizes are listed in tables for quick reference. This manual is written in Chinese.
| Control Mode | Pneumatic normally closed |
|---|---|
| Opening Pressure | 0.55 MPa‑0.7 MPa |
| Operating Pressure | 0.2 MPa‑0.8 MPa |
| Response Time | max. 0.006 s |
| Operating Temperature | -10 °C to 70 °C |
| Actuator Life | >2000 cycles |
| Applicable Guide Rail Nominal Size | #25 to #65 |
The UBPS can operate between -10 °C and 70 °C.
