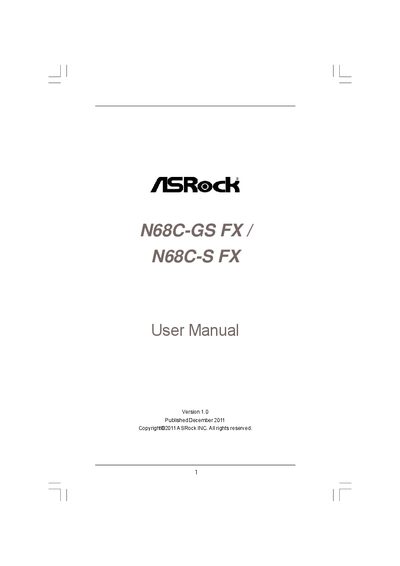

N68C-GS FX / N68C-S FX User Manual
This user manual introduces the ASRock N68C-GS FX and N68C-S FX motherboards, describing their features, package contents, and hardware layout. It guides users through pre‑installation precautions, CPU, memory, and expansion slot installation, as well as SATA and IDE connections.
The document also covers BIOS setup utilities, overclocking features, integrated graphics, audio, LAN options, and software support including driver installation and utilities such as ASRock Instant Flash and OC Tuner. Compatibility with various Windows operating systems and detailed troubleshooting notes are included.
| Form Factor | Micro ATX (9.6‑in x 8.2‑in) |
|---|---|
| CPU Socket | Socket AM3+ (supports AM3+ processors) |
| Maximum Memory | 8 GB total |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Audio Codec | VIA VT1705, 5.1‑channel HD Audio |
| LAN | Realtek Giga PHY RTL8211CL (10/100/1000 Mb/s) / RTL8201EL (10/100 Mb/s) |
| SATA Connectors | 4 × SATA2 3.0 Gb/s ports (RAID, NCQ, Hot‑Plug) |
The motherboard supports Microsoft Windows 7/7 64‑bit, Vista/Vista 64‑bit, XP and XP 64‑bit.
It provides four SATA2 3.0 Gb/s connectors with RAID, NCQ and Hot‑Plug support.
ASRock Instant Flash is a BIOS flash utility that updates the BIOS directly from the POST screen.
