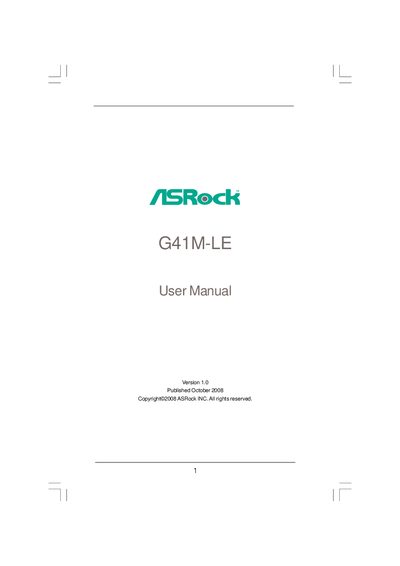

ASROCK G41M-LE User Manual

Introduce the characteristics of the G41M-LE motherboard

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: English
Pages: 47
File format: PDF
File size: 403 KB
Published: 15 March, 2012
Updated: 30 September, 2023
Model: G41M-LE
MD5 checksum: E729212D84EFDA518C4F22AED9CB8E54
PDF: ASROCK G41M-LE User Manual PDF

About this manual

This manual covers the complete hardware installation process for the ASRock G47M-LE Micro ATX motherboard, including CPU, memory, storage, and peripheral connections. It also details BIOS configuration options and the utilities provided on the support CD.

Additional sections explain supported operating systems, safety warnings, and troubleshooting tips, helping users configure and maintain the motherboard for optimal performance.

What's inside

Package Contents
Specifications
Installation Guide
BIOS Setup Utility
Software Support

Specifications

Form Factor	Micro ATX (9.6" x 8.6")
CPU Socket	LGA 775
Supported CPUs	Intel Core 2, Pentium Dual Core, Celeron Dual Core, etc.
Chipset	Northbridge Intel G41, Southbridge Intel ICH7
Expansion Slots	1 × PCIe x16, 1 × PCIe x1, 2 × PCI
Audio	7.1‑channel HD Audio (VIA VT1708S)
LAN	Gigabit Ethernet (Realtek RTL8111DL)
SATA Connectors	4 × SATAII 3.0 Gb/s

Frequently asked questions

Which Windows operating systems are supported by the G47M-LE motherboard?

The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista, and Vista 64‑bit.

How many SATA ports are available on the motherboard?

There are four SATAII 3.0 Gb/s connectors.

What is the maximum amount of system memory the board can handle?

The board can support up to 8 GB of DDR2 memory.

What type of CPU socket does the G47M-LE use?

It uses an LGA 775 socket.
