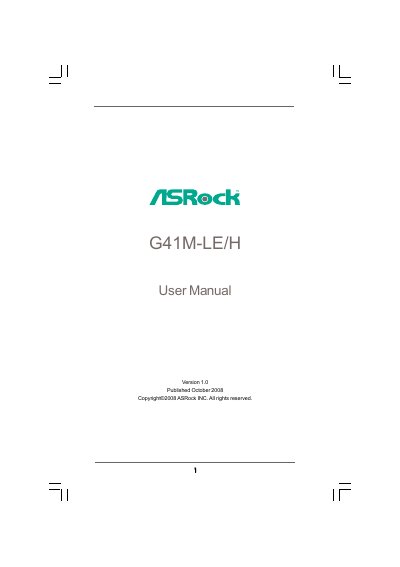

ASRock G41M-LE/H User Manual
This manual covers everything needed to install and configure the ASRock G41M-LE/H Micro ATX motherboard, including hardware layout, CPU and memory installation, expansion slot usage, and connector descriptions. It also details BIOS features, power‑saving technologies, and software support via the included Support CD.
Additional sections explain minimum hardware requirements for Full HD Blu‑ray playback, overclocking cautions, and troubleshooting tips, with contact information for technical assistance. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU Socket | LGA 775 |
| Memory Slots | 2 x DDR2 DIMM |
| Maximum Memory Capacity | 8 GB |
| Expansion Slots | 1 x PCI‑Express x16, 1 x PCI‑Express x1, 2 x PCI |
| Graphics | Intel® Graphics Media Accelerator X4500 |
| SATA Connectors | 4 x SATAII 3.0 Gb/s |
| Rear USB Ports | 4 x USB 2.0 |
The motherboard supports Microsoft Windows 2000, XP, XP 64‑bit, Vista and Vista 64‑bit.
There are four SATAII 3.0 Gb/s connectors on the motherboard.
It uses an LGA 775 socket compatible with Intel Core 2, Pentium Dual Core, Celeron Dual Core and other LGA 775 processors.
The rear panel includes four USB 2.0 ports.
