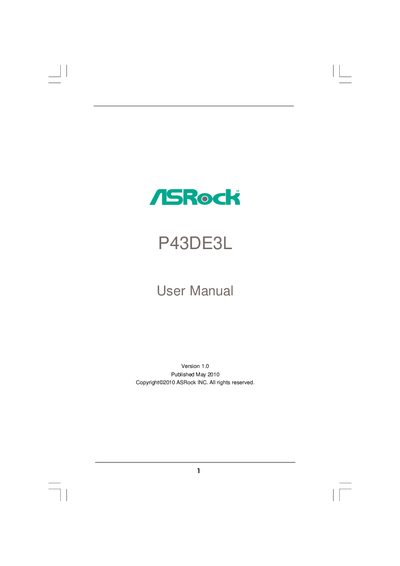

ASRock P43DE3L User Manual, introduces the functions and features of P43DE3L motherboard, installation and use methods
This manual covers everything needed to install and configure the ASRock P43DE3L ATX motherboard, including package contents, CPU and memory installation, expansion slot usage, and connector wiring. It also details BIOS features, over‑clocking cautions, and the support CD utilities.
Additional sections guide users through operating‑system installation, driver setup, and troubleshooting, with safety warnings and regulatory notices included throughout.
| Form Factor | ATX (12.0‑in x 7.5‑in, 30.5 cm x 19.1 cm) |
|---|---|
| Chipset | Northbridge Intel® P43, Southbridge Intel® ICH10 |
| Memory Slots | 2 × DDR3 DIMM (max 8 GB) |
| Maximum Memory Capacity | 8 GB |
| Expansion Slots | 1 × PCI‑Express 2.0 x16, 3 × PCI‑Express x1, 2 × PCI |
| Audio Codec | VIA® VT1705 (5.1 CH HD Audio) |
| LAN Controller | Realtek RTL8111DL (Gigabit Ethernet) |
| SATA Connectors | 6 × SATAII 3.0 Gb/s (supports NCQ, AHCI, Hot Plug) |
| BIOS | 8 Mb AMI BIOS |
The motherboard supports Windows 7, Windows 7 64‑bit, Vista, Vista 64‑bit, Windows XP and Windows XP 64‑bit.
There are six USB 2.0 ports on the rear I/O panel.
The board can hold up to 8 GB of DDR3 memory.
