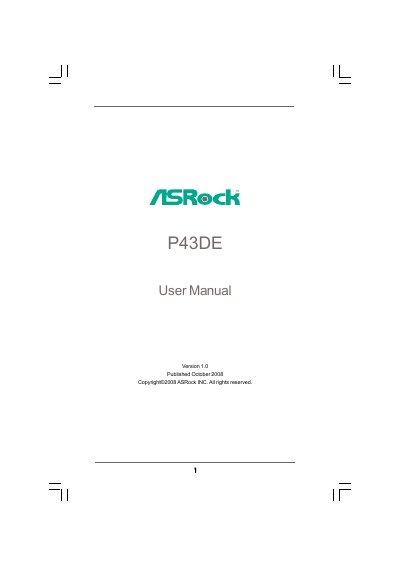

ASRock P43DE Motherboard User Manual

This is a user manual published by ASRock INC., which introduces the usage and features of the P43DE motherboard.

Brand: ASRock
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 55
File format: PDF
File size: 921 KB
Published: 15 March, 2012
Updated: 29 September, 2023
Model: P43DE
MD5 checksum: 82190B7FDE954A1C90370FB0C4B57534
PDF: ASRock P43DE Motherboard User Manual PDF

About this manual

This manual covers the ASRock P43DE ATX motherboard, detailing its hardware layout, installation steps, BIOS configuration, and software support. It includes safety warnings, warranty information, and contact details for technical assistance.

The document is organized into sections such as Introduction, Installation, BIOS Setup Utility, and Software Support, providing step‑by‑step guidance for assembling the system, configuring overclocking features, and installing operating systems. This manual is written in Chinese.

What's inside

Introduction
Installation
BIOS Setup Utility
Software Support
Specifications
Hardware Layout
I/O Panel
Expansion Slots
Driver Installation

Specifications

Form Factor	ATX (12.0 in x 8.5 in)
CPU Socket	LGA 775
Chipset	Intel P43 (Northbridge) / Intel ICH10 (Southbridge)
Memory Slots	4 x DDR2 DIMM slots
Maximum Memory Capacity	16 GB
SATAII Connectors	6 x SATAII 3.0 Gb/s
Audio Codec	VIA VT1708S, 7.1‑channel HD Audio
LAN	Realtek RTL8111DL Gigabit Ethernet
BIOS	8 Mb AMI BIOS

Frequently asked questions

What form factor is the ASRock P43DE motherboard?

It uses an ATX form factor measuring 12.0 in × 8.5 in (30.5 cm × 21.6 cm).

How many DDR2 DIMM slots does the P43DE have?

The motherboard provides four DDR2 DIMM slots.

What is the maximum memory capacity supported?

It supports up to 16 GB of system memory.

How many SATAII connectors are available on the board?

There are six SATAII 3.0 Gb/s connectors.

Download PDF (921 KB)
