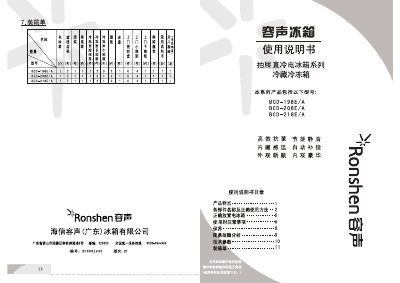

This manual provides detailed instructions for the Ronshen BCD‑198E/A, BCD‑208E/A and BCD‑218E/A side‑by‑side refrigerators. It covers safety precautions, proper installation clearances, operation of temperature controls, and maintenance procedures such as defrosting and cleaning.
The document also lists the technical specifications for each model, including capacity, power consumption, dimensions, refrigerant type and noise level, and offers a simple troubleshooting guide for common issues. This manual is written in Chinese.
| Total effective volume (L) | 198 / 208 / 218 |
|---|---|
| Freezer effective volume (L) | 70 / 82 / 82 |
| Freezer capacity (kg/24h) | 3.6 / 4.0 / 4.0 |
| Rated voltage (V) | 220~ |
| Power consumption (kWh/24h) | 0.49 / 0.48 / 0.48 |
| Energy efficiency class | 1 |
| Refrigerant | R600a (55 g) / R600a (65 g) |
| Weight (kg) | 53 / 56 / 58 |
| External dimensions (W×D×H mm) | 545×860×1556 / 545×600×1644 / 545×600×1676 |
| Noise level (dB(A)) | 38 |
All three models use R600a refrigerant (55 g for BCD‑198E/A and 65 g for the other models).
Leave at least 100 mm at the back, 200 mm on each side, 300 mm above, and keep the door opening space at 160 mm.
The BCD‑198E/A consumes 0.49 kWh per 24 hours.
