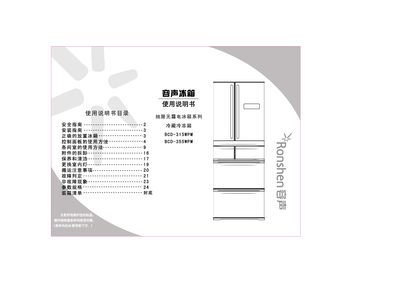

This manual provides safety guidelines, installation instructions, and operating procedures for the Ronshen BCD-315WPN and BCD-355WPN refrigerators. It includes detailed information on proper placement, power requirements, control panel functions, and troubleshooting.
The document also lists the technical specifications of both models, such as capacities, power consumption, dimensions, and the type of refrigerant used. Accessories and part numbers are included in the final section. This manual is written in Chinese.
| Total Net Capacity (L) | 315 L / 355 L |
|---|---|
| Freezer Capacity (L) | 43 L / 46 L |
| Refrigerated Compartment Capacity (L) | 203 L / 229 L |
| Vegetable Compartment Capacity (L) | 48 L / 58 L |
| Variable‑Temperature Compartment Capacity (L) | 15 L / 16 L |
| Ice Maker Capacity (L) | 6 L / 6 L |
| Cooling Capacity (kg/24 h) | 5 kg |
| Power Consumption (kWh/yr) | 0.96 kWh / 0.99 kWh |
| Net Weight (kg) | 93 kg / 96 kg |
| Dimensions (mm, W×D×H) | 685 × 639 × 1806 mm / 685 × 688 × 1806 mm |
| Defrost Power (W) | 156 W |
| Refrigerant | R600a (60 g / 62 g) |
| Energy Efficiency Class | 2 |
Press and hold the “Fast Freeze” button for more than 5 seconds; a beep sounds and a lock icon lights, indicating the function is locked.
Both models use the environmentally friendly refrigerant R600a; the BCD‑315WPN contains 60 g and the BCD‑355WPN contains 62 g.
A dedicated 220 V, 50 Hz single‑phase outlet with a minimum 10 A fuse is required.
