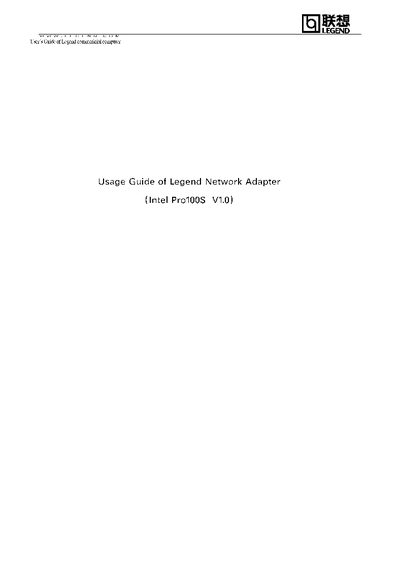

The Legend Intel Pro100S is a 32‑bit PCI Ethernet adapter that supports 10/100 Mbps auto‑negotiation, full‑duplex operation and PCI REV2.2 compliance. The manual describes its features, hardware installation steps, driver installation for Windows 95/98 and Windows NT 4.0, and troubleshooting guidance.
Detailed procedures include shutting down the PC, inserting the card into a PCI slot, securing it, connecting the RJ‑45 cable, and installing the appropriate drivers. Precautions for static electricity and electromagnetic interference are also provided.
| Interface | 32‑bit PCI |
|---|---|
| Supported Speeds | 10/100 Mbps auto‑control |
| Duplex | Full duplex up to 20/200 Mbps |
| PCI Revision | PCI REV2.2 |
| Connector | Standard RJ‑45 |
| LED Indicators | LINK/100 green, LINK/10 yellow, ACT red |
The green LED (LINK/100) shows a 100 Mbps link, the yellow LED (LINK/10) shows a 10 Mbps link, and the red LED (ACT) indicates active transmission/reception.
