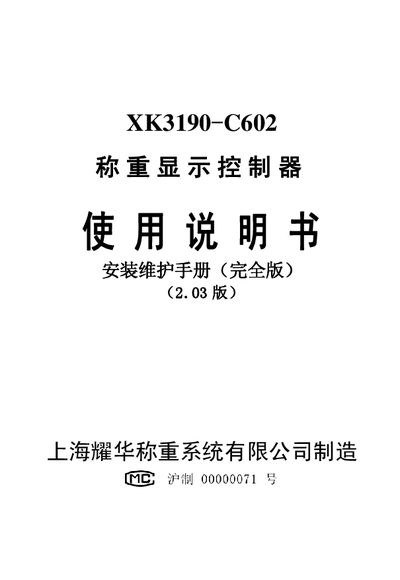

This manual is a complete version of the installation and maintenance manual for XK3190-C602 instrument, which mainly introduces the installation, wiring, calibration, parameter setting, operation methods and other contents
This manual covers the XK3190-C602 weight display controller, a 32‑bit ARM Cortex‑M3 based device with high‑precision A/D conversion. It describes the main hardware features, including a 6‑digit LED display, multiple serial interfaces, and Modbus RTU support, and explains how to install, wire, and configure the controller for various weighing applications.
Detailed sections guide the user through parameter initialization, quantitative and split‑weight control, printing interface setup, and safety precautions. Appendices provide troubleshooting tables, printing format specifications, and contact information for Yaohua. This manual is written in Chinese.
| Maximum division count | n=3000 |
|---|---|
| Weight sensor excitation | DC 5 V, 100 mA |
