Featured XK3190-C602 manuals
Yaohua XK3190-C602 Weight Display Controller User Manual
This manual covers the XK3190-C602 weight display controller, a 32‑bit ARM Cortex‑M3 based device with high‑precision A/D conversion. It describes the main hardware features, including a 6‑digit LED display, multiple serial interfaces, and Modbus RTU support, and explains how to install, wire, and configure the controller for various weighing applications.
Detailed sections guide the user through parameter initialization, quantitative and split‑weight control, printing interface setup, and safety precautions. Appendices provide troubleshooting tables, printing format specifications, and contact information for Yaohua. This manual is written in Chinese.
Covers: Overview · Main Parameters · Installation and Wiring · Operation Instructions · Quantitative Control · Split‑Weight Control

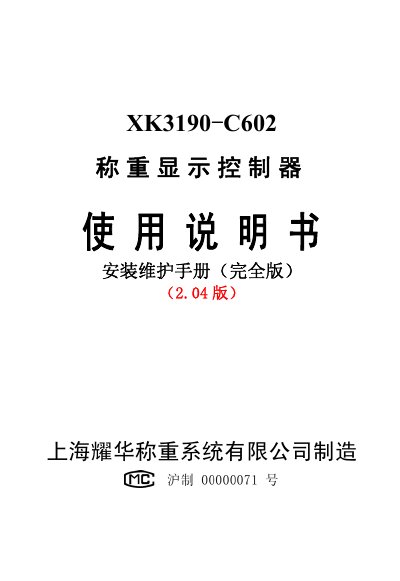

Yaohua XK3190-C602 Weight Display Controller Installation and Maintenance Manual
The manual provides complete instructions for installing, wiring, calibrating and operating the XK3190-C602 weight display controller. It includes detailed diagrams of the front and rear panels, main board, power board, and connection methods for sensors and external devices.
Additional sections cover parameter settings, batch weighing and sorting scale functions, error handling, communication interfaces (including MODBUS RTU), and optional relay box usage. Safety guidelines and technical specifications are also included. This manual is written in Chinese.
Covers: Overview · Main Parameters · Installation and Wiring · Calibration · General Parameter Settings and Operation · Batch Weighing Operation
Latest XK3190-C602 manuals
Yaohua XK3190-C602 Weight Display Controller User Manual
User Manual 98 pages · 725 KB · ZHThe Yaohua XK3190-C602 weight display controller user manual provides installation, operation, parameter settings, and safety information.
Yaohua XK3190-C602 Weight Display Controller Installation and Maintenance Manual
Service Manual 98 pages · 729 KB · ZHInstallation, wiring, calibration and operation guide for the Yaohua XK3190-C602 weight display controller.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Service Manual
Disassembly, diagnostics and part numbers, for repair.
Questions answered in XK3190-C602 manuals
How is the controller calibrated?
Calibration is performed according to the method described in Chapter 4, which includes the calibration procedure and data check/modification steps.
From: Yaohua XK3190-C602 Weight Display Controller Installation and Maintenance Manual
What interface is used for a large‑screen display?
The large‑screen display connects via a serial output with an optically isolated 20 mA current‑loop signal.
From: Yaohua XK3190-C602 Weight Display Controller Installation and Maintenance Manual
