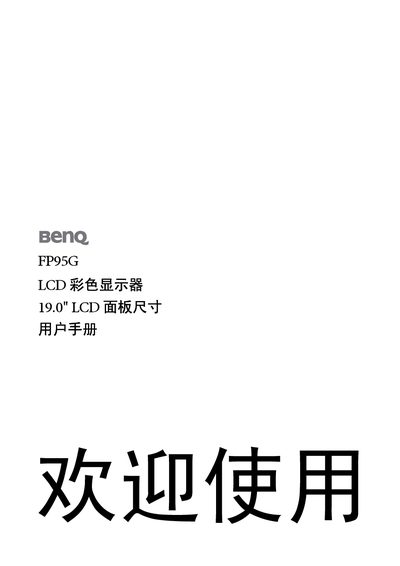

This manual introduces the basic operations of BenQ FP95G LCD display, including installation, connection, setting, maintenance and so on.
This user manual covers everything you need to set up and use the BenQ FP95G LCD color display, including unpacking, connecting power and video cables, adjusting screen resolution and refresh rate, and using the OSD menu. Safety guidelines, cleaning instructions, and maintenance tips are also provided to ensure reliable long‑term performance.
The document includes detailed specifications, supported PC resolutions, and a troubleshooting section with common error messages and FAQ. Contact information for further assistance is listed at the end of the guide. This manual is written in Chinese.
| Display size | 19.0" active TFT |
|---|---|
| Native resolution | 1280 x 1024 |
| Color depth | 16.7 million colors |
| Contrast ratio (typical) | 800:1 |
| Brightness (typical) | 300 cd/m² |
| Response time (typical) | 5 ms |
| Viewing angle (typical) | 160°/160° (CR>10) |
| Maximum power consumption | 40 W |
| Input signals | DVI‑D (optional) and D‑Sub |
| Power input | 100‑240 V, 50‑60 Hz |
Unplug the monitor, then use a non‑abrasive cloth to wipe the screen; avoid any liquids, wetting agents, or glass cleaners.
Hold the MENU key for 15 seconds to enter the OSD Lock option and change it, or use the W or X key to select the OSD Lock submenu and set it to Off.
