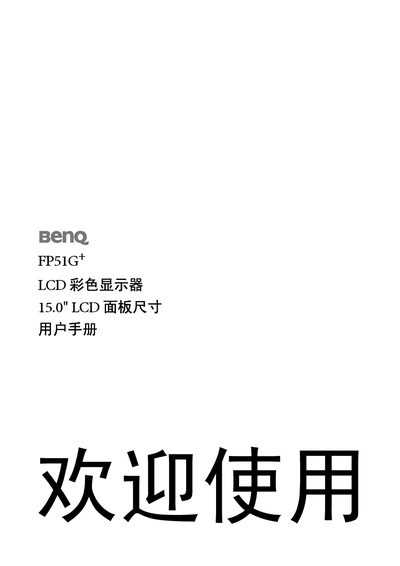

This document is a user manual for the BenQ FP51G+ LCD color monitor. The manual provides information on installation, maintenance and cleaning, adjusting screen resolution and refresh rate, and includes visual representations of the front and back of the monitor.
This manual provides step‑by‑step guidance for setting up the BenQ FP51G+ 15.0" LCD color monitor, including unpacking, connecting power and video cables, and mounting the base. Safety precautions, cleaning instructions, and troubleshooting tips are included to help users maintain optimal performance.
The document also lists detailed technical specifications such as display type, resolution, contrast, brightness, response time, viewing angles, power consumption, input signals and environmental limits, enabling users to understand the capabilities of the monitor and configure it correctly for Windows Vista, Windows XP, and other operating systems. This manual is written in Chinese.
| Display type | 15.0" active TFT |
|---|---|
| Resolution | 1024 x 768 |
| Typical contrast ratio | 700:1 |
| Minimum contrast ratio | 450:1 |
| Typical brightness | 250 cd/m2 |
| Minimum brightness | 200 cd/m2 |
| Typical response time | 8 ms |
| Maximum response time | 13 ms |
| Typical viewing angle (CR‑10) | 140/130° |
| Minimum viewing angle (CR‑10) | 120/110° |
| Maximum power consumption | 30 W |
| Standby power consumption | < 1 W |
| Input signal | RGB analog 0.7 Vpp/75 Ω positive |
| Sync connector | TTL 15‑pin mini D‑sub |
| Dimensions (W×H×D) | 338 × 331 × 136 mm |
Unplug the monitor, then wipe the LCD surface with a non‑abrasive cloth; do not use liquids, wetting agents, or glass cleaners.
The monitor’s maximum power consumption is 30 W.
Typical viewing angles are 140° horizontal and 130° vertical (CR‑10).
