This manual describes the AP-61131 battery protector’s key features, including MOSFET control, low‑loss design, and automatic over‑voltage protection for 12 V battery systems. It explains the default cut‑off voltage (10 V) and reset voltage (11.5 V) and provides a wiring diagram with recommended cable sizes and current limits.

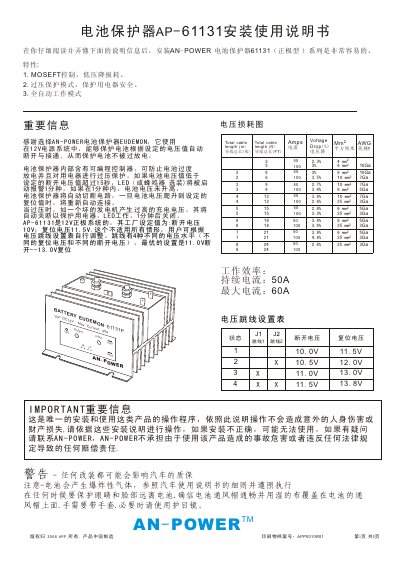

The document gives step‑by‑step installation instructions, covering mounting plate preparation, jumper‑setting tables, and connection of input and output leads. Safety warnings advise against mounting the protector on the engine or moving parts and recommend using protective gear during installation. Warranty and contact information are also included. This manual is written in Chinese.
| Cut‑off voltage | 10 V |
|---|---|
| Reset voltage | 11.5 V |
| Maximum current | 60 A |
| Continuous current | 50 A |
| Operating voltage | 12 V |
The default cut‑off voltage is 10 V.
No, the protector must not be installed on the engine or any moving parts.
