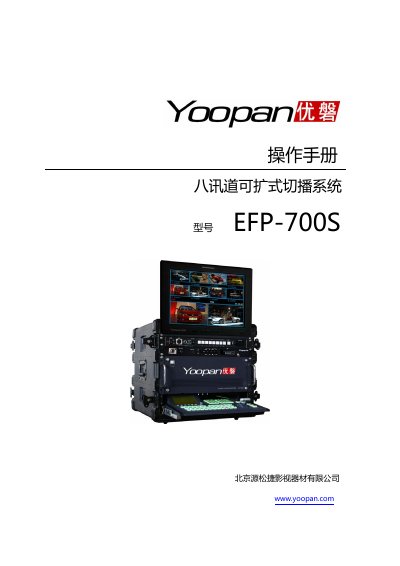

This manual introduces the use of the Yoopan EFP 700S system, including the system components, the functions of the front panel and the rear panel, and the specifications.
This manual covers safety warnings and installation precautions for the Yoopan EFP-700S, including handling, ventilation, and protection against liquids and fire. It also details the proper use of the unit, such as avoiding short circuits and over‑loading the power input.
The document lists the technical specifications of the device, describing its video and audio interfaces, supported formats, storage capacity, dimensions, weight, and power requirements. Contact information for Yoopan’s support and service network is provided at the end. This manual is written in Chinese.
| Supported video formats | SDI (SMPTE 272M‑C 270Mbps), DV, Composite, Component YUV |
|---|---|
| Audio connectors | RCA and XLR |
| Dimensions (W×D×H) | 530 mm × 620 mm × 490 mm |
| Power supply | AC 220 V, DC 12 V |
Do not use liquids or corrosive cleaners, keep the unit away from fire, heat sources, and water, and do not block the ventilation holes.
It can be powered from AC 220 V or DC 12 V.
