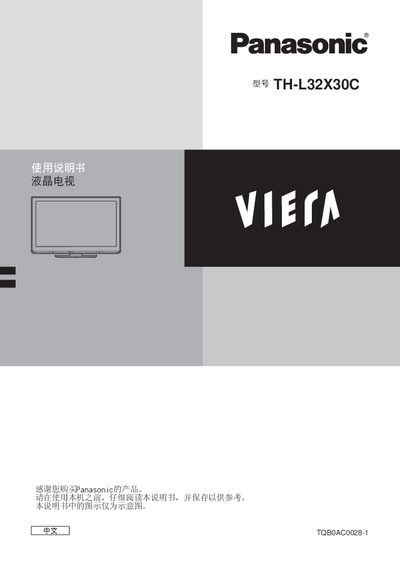

This is the user manual of Panasonic LCD TV TH-L32X30C
This manual provides safety precautions, quick‑start steps and detailed instructions for connecting and operating the Panasonic TH‑L32X30C LCD television. It covers basic functions such as channel search, picture settings, audio controls, as well as advanced features like VIERA Link and network services.
Additional sections include installation guidance for wall‑mount brackets, specifications, maintenance tips, and a comprehensive FAQ that helps resolve common picture, sound and network issues. This manual is written in Chinese.
| Power Supply | 220 V ~ 50 Hz |
|---|---|
| Rated Power Consumption | 60 W |
| Standby Power Consumption | 0.25 W |
| Screen Size | 80 cm (31.5 in) diagonal |
| Resolution | 1366 × 768 (1,049,088 pixels) |
| Audio Output Power | 14 W (7 W + 7 W) |
| Speaker Size | 160 mm × 42 mm × 2, 8 Ω |
Check the antenna position, direction and connections, and keep the TV away from the RF cable and other electronic devices.
Set the HDMI input audio to “2‑ch LPCM” in the sound menu and verify the HDMI audio settings on the connected device.
Turn the TV off with the power button, wait a few seconds, then turn it on again; also check that the TV is set to a video mode.
Use a soft cloth lightly dampened with water or a 1 % diluted neutral detergent, then dry with a clean soft cloth; avoid harsh chemicals or excessive pressure.
