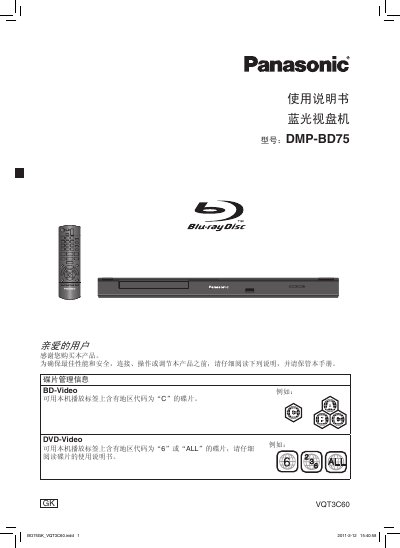

This document is a user manual for the Blu-ray Disc Player model DMP-BD75. The document provides instructions on how to connect, operate, and adjust the product, as well as important notes and safety warnings. The product is capable of playing BD-Video discs with region code C and DVD-Video discs with region code 6 or ALL.
The manual begins with safety warnings and installation guidelines, advising users to place the player on a flat surface, keep it at least 15 cm from walls, avoid direct sunlight, moisture, and ensure proper ventilation. It also covers power‑line handling, battery replacement for the remote, and disposal instructions.
Subsequent sections describe how to connect the player to a TV or AV receiver via HDMI or analog video, set up network access, operate playback functions, adjust settings, and perform routine maintenance such as cleaning the disc tray and updating firmware. This manual is written in Chinese.
| Power Supply | AC 220–240 V, 50/60 Hz |
|---|---|
| Power Consumption | ≈ 12 W |
| Standby Power Consumption | ≈ 0.2 W |
| Dimensions (W×D×H) | 430 mm × 185 mm × 35 mm |
| Weight | ≈ 1.6 kg |
| Operating Temperature Range | +5 °C to +35 °C |
| Operating Humidity Range | 10 % to 80 % RH (no condensation) |
| Laser Wavelengths | 790 nm (CD), 655 nm (DVD), 405 nm (BD) |
| HDMI Output Connector | Type‑A 19‑pin |
| USB Interface | USB 2.0 |
Select the “Reset to factory settings” option in the menu, which restores all user settings to their original defaults.
