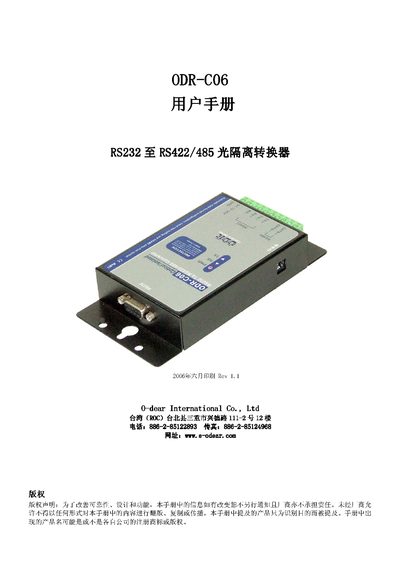

This document describes the features and characteristics of the ODR-C06 optical isolation converter, including automatic direction flow control, automatic baud rate switching, 3000VDC power supply and signal isolation protection.
The ODR-C06 provides bidirectional conversion of RS232 to RS422 or RS485, featuring automatic data‑format detection and baud‑rate switching from 1.2 Kbps to 115.2 Kbps. Optical isolation of 3000 VDC protects connected equipment from ground loops and voltage spikes.
Installation is done via a DIN‑rail, and the unit accepts a wide power range (DC +10 V to +30 V) through either an external DC jack or screw‑terminal input (only one source at a time). LED indicators show power, TX and RX status, and the device supports standard D‑Sub 9‑pin female connectors for host connections. This manual is written in Chinese.
| Power input voltage | DC +10V to +30V |
|---|---|
| Input interface | RS232 (RXD, TXD, GND) |
| Output interface | RS422/RS485 |
| Host connector | Standard D‑Sub 9‑pin female |
| Communication speed | 1.2 Kbps to 115.2 Kbps (auto switch) |
| Isolation voltage | 3000 V DC |
| Maximum cable length | 4000 ft (1250 m) |
| Power consumption | 1.2 W |
| Operating temperature | -20 °C to 65 °C |
| Dimensions | 151 mm × 111 mm × 26 mm |
| Weight | 375 g |
| Humidity range | 10 %–90 % non‑condensing |
It can be powered from either an external DC jack or the screw‑terminal input, with a voltage range of +10 V to +30 V, but only one power source may be used at a time.
The device provides 3000 V DC optical isolation.
It automatically switches between 1.2 Kbps and 115.2 Kbps.
The maximum cable length is 4000 ft (1250 m).
