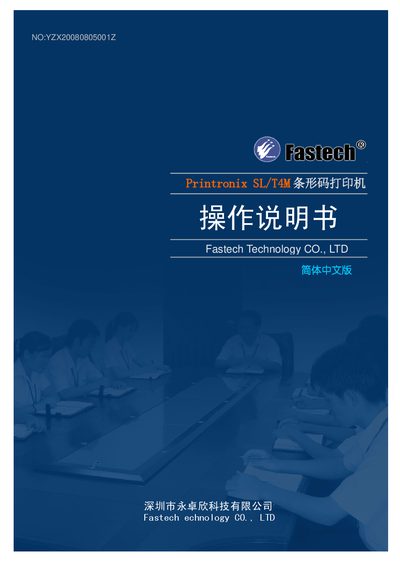

This document is the operation manual of Printronix SL/T4M barcode printer. It introduces the product features, performance parameters, operating methods, optional accessories, software use, machine maintenance, etc.
This manual introduces the SL/T4M barcode printer, highlighting its industrial‑grade construction, 32 MB memory, 8 MB flash, and optional RFID upgrade. It details the hardware layout, media handling options, and supported printing languages such as ZPL and EPCglobal Class 1/Gen2.
The guide covers installation steps, ribbon and paper loading, user interface navigation, connectivity (RS‑232, USB 2.0, optional Ethernet/Wi‑Fi), and maintenance procedures including print‑head cleaning and cooling recommendations. Software tools for remote management and RFID configuration are also described. This manual is written in Chinese.
| Memory | 32 MB RAM, 8 MB Flash |
|---|---|
| Print Speed | 10 ips at 203 dpi |
| Print Resolution | 203 dpi (8 dpmm) optional 305 dpi (12 dpmm) |
| Print Width | 4.1 in (104 mm) max |
| Media Width | up to 6.0 in (152 mm) |
| Media Types | Roll paper, film, synthetic, thermal transfer/thermal direct labels, electronic tags |
| Ribbon Width | 0.55 in to 5.0 in (14 mm to 127 mm) |
| Maximum Ribbon Length | 450 m |
| Interfaces | RS‑232, IEEE1284 (parallel), USB 2.0, optional Ethernet 10/100Base‑T, optional Wi‑Fi 802.11b/g |
| Supported Print Languages | ZPL, TEC, IPL, Sata, DPL, RFID (ZPL & Sato) |
Follow the “碳带和纸张的安装” section, which describes loading the ribbon and media onto the printer.
The printer supports RS‑232 serial, IEEE1284 parallel, USB 2.0, and optional Ethernet (10/100Base‑T) or Wi‑Fi (802.11b/g).
The device prints up to 10 ips at 203 dpi (higher speeds at 305 dpi).
