The YP6802 series is a low voltage difference, high precision output voltage, low consumption current positive voltage type voltage regulator developed using CMOS technology. Features include an output voltage range of 1.2 to 5.0V, an output voltage accuracy of +/-2.0%, an input-output voltage difference of 160mV, a consumption current of 8.0uA, and an output current of up to 300mA.
The YP6802 is a CMOS‑based low‑dropout (LDO) regulator offering a wide output voltage range of 1.2 V to 5.0 V with high accuracy (±2 %). It delivers up to 300 mA of output current while consuming only 8 µA of quiescent current and includes built‑in over‑current and short‑circuit protection.

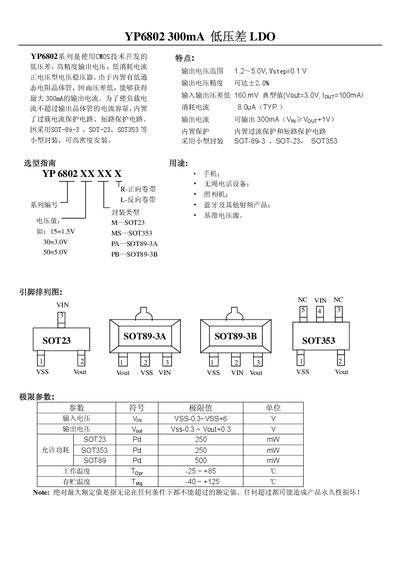

The device is available in compact SOT‑23, SOT‑353 and SOT‑89‑3 packages for high‑density mounting in mobile phones, cordless‑phone equipment, cameras, Bluetooth devices and reference voltage sources. Typical application circuits, pin configurations and package dimensions are provided. This manual is written in Chinese.
| Output voltage range | 1.2 V – 5.0 V |
|---|---|
| Maximum output current | 300 mA |
| Dropout voltage (typical) | 160 mV |
| Quiescent current (typical) | 8 µA |
The YP6802 can deliver up to 300 mA of output current.
The typical quiescent current is 8 µA.
The typical dropout voltage is 160 mV.
