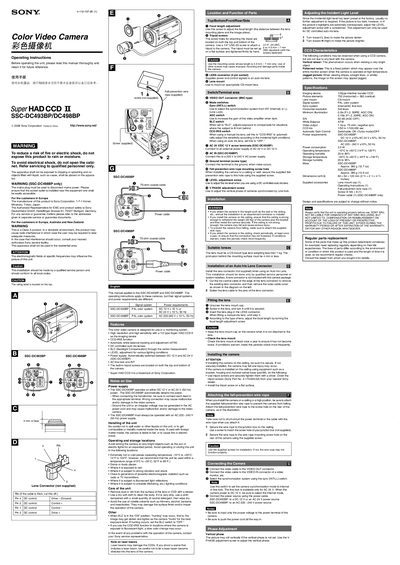

This manual introduces the operating methods of color video camera
This manual covers safety precautions, power requirements and basic operation of the SSC-DC493BP and SSC-DC498BP color camcorders. It explains the dual power options (DC 12 V or AC 24 V for the SSC-DC493BP, AC 220‑240 V for the SSC-DC498BP) and warns against exposure to moisture, rain or improper handling.
Installation guidance includes mounting the camera on walls or ceilings, using the supplied fall‑prevention wire rope, securing tripod screws, and adjusting focus, iris level and vertical phase. The document also lists specifications, environmental limits, and recommended maintenance procedures. This manual is written in Chinese.
| Imaging device | 1/3 type interline transfer CCD |
|---|---|
| Picture elements | 752 (horizontal) x 582 (vertical) |
| Lens mount | CS‑mount |
| Signal system | PAL color system |
| Sync system | Internal/AC line lock |
| Horizontal resolution | 540 lines |
| Minimum illumination | 0.3 Ix (F1.2, 50 IRE, AGC ON) |
| Signal‑to‑noise ratio | 50 dB (AGC OFF) |
| Power consumption | 3.5 W |
| Operating temperature | -10 °C to +50 °C |
| Operating humidity | 20 % to 80 % |
| Storage temperature | -40 °C to +60 °C |
| Mass (SSC‑DC493BP) | Approx. 360 g |
| Mass (SSC‑DC498BP) | Approx. 385 g |
