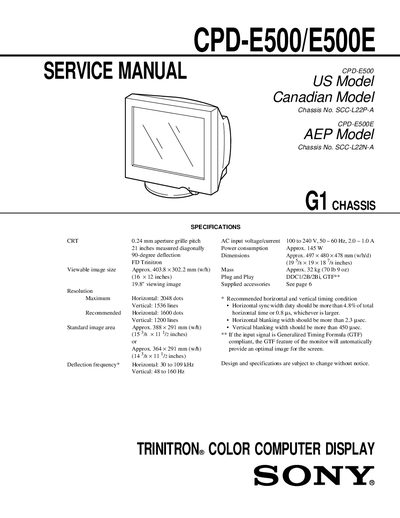

This manual is a service manual for the Sony CPD-E500/E500E G1 monitor. It mainly introduces the monitor's specifications, technical features, appearance, circuit, and maintenance points.
This service manual provides detailed instructions for repairing and maintaining the Sony CPD‑E500/E500E CRT monitor. It includes safety check‑outs, disassembly procedures for the chassis, boards and picture tube, as well as adjustment and calibration guidelines.
The document also contains wiring diagrams, exploded views, a parts list, and power‑saving mode information, helping technicians diagnose faults, replace components with Sony‑approved parts, and restore the monitor to proper operation.
| AC input voltage/current | 100‑240 V, 50‑60 Hz, 2.0‑10 A |
|---|---|
| Power consumption (normal operation) | ≈ 145 W |
| Display size | 21 inches (measured diagonally) |
| Dimensions (W × H × D) | ≈ 497 × 480 × 478 mm |
| Weight | ≈ 32 kg |
| Horizontal frequency range | 30 kHz – 109 kHz |
| Vertical frequency range | 48 Hz – 160 Hz |
| Maximum resolution | 1600 × 1200 pixels |
| Pixel clock | 229.5 MHz |
| Horizontal sync frequency (typical) | 106.250 kHz |
Check for unsoldered connections, pinched wires, missing hardware, unauthorized replacement parts, deteriorated components, cracked line cords, correct B+ and HV values, and AC leakage on exposed metal parts.
Press the RESET button (center of the control button) to restore all adjustments to the factory defaults.
