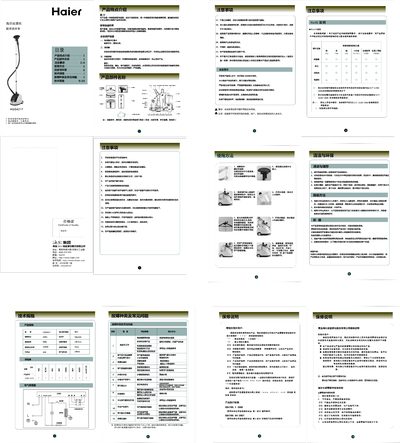

This manual introduces the Haier HGS4217 garment steamer, a high‑end household steam appliance with a transparent water tank and elegant design. It explains how to check steam and water lines before use, how to operate the four‑speed power knob, and how the built‑in temperature controller and thermal fuse protect against overheating.
The guide also covers water‑tank filling, cleaning, descaling procedures, troubleshooting common issues such as no power or low steam output, and warranty information. Safety warnings emphasize proper grounding, avoiding water immersion, and never operating the unit with a damaged power cord. This manual is written in Chinese.
| Model | HGS4217 |
|---|---|
| Steam temperature (max) | 98 °C |
| Rated voltage | 220 V~ |
| Steam output | 329 g/min |
| Rated frequency | 50 Hz |
| Maximum pole height | 136.5 cm |
| Minimum pole height | 45 cm |
| Rated output power | 1500 W |
| Water tank capacity | 2.0 L |
| Steam/air hose length | 140 cm |
Add 1000 g of pure water and 2 g of descaling agent to the water tank, heat for 20‑30 minutes, then drain the water.
Tap water can be used; if the local water hardness is high, mix it with an equal amount of distilled water.
Make sure the water tank is filled, the steam hose is not blocked, and the water‑pump hose is correctly positioned; clean any blockage if necessary.
