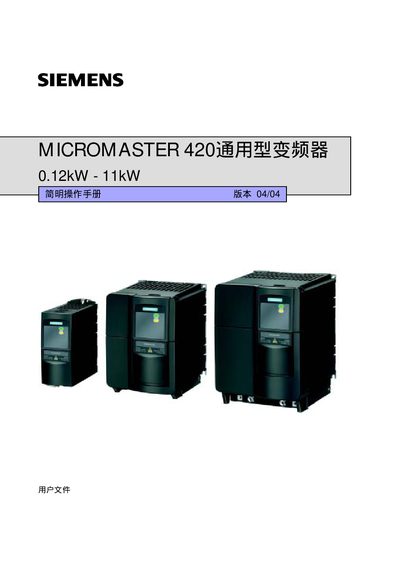

MICROMASTER 420 variable frequency drive instruction manual, introduces the safety use, installation, electrical connection, communication, BOB/AOP of the variable frequency drive
The MICROMASTER 420 is a general‑purpose variable frequency drive ranging from 0.12 kW to 11 kW. This manual provides safety warnings, installation clearances, wiring diagrams, parameter settings and troubleshooting information for the device.
Key sections include safety instructions, mechanical installation dimensions, electrical connection details, parameter configuration, LED indicators, and a comprehensive fault‑code list to aid in diagnosing issues during operation. This manual is written in Chinese.
