NetScreen-500 is a customized, high-performance security system that provides flexible and high-performance solutions. It integrates functions such as firewall, DoS, VPN, and traffic management, and is suitable for headquarters service providers of medium and large enterprises.
The Juniper NetScreen-500 is a high‑performance security system that integrates firewall, DoS, VPN and traffic management functions in a compact chassis. It supports virtual systems, high‑availability interfaces and modular hardware to meet demanding enterprise environments.

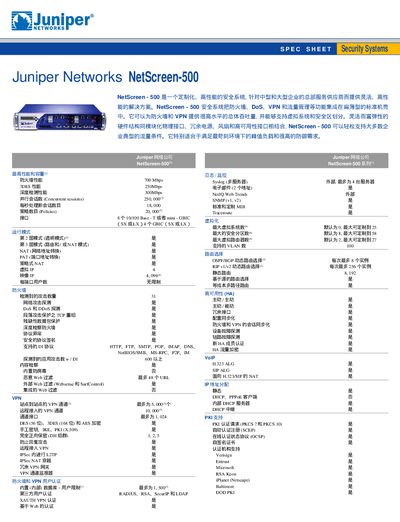

The manual provides performance specifications, hardware interfaces, licensing options, physical dimensions, certifications and management features such as WebUI, CLI, SNMP and VPN administration. It also outlines upgrade paths for virtual systems and advanced routing capabilities. This manual is written in Chinese.
| Firewall throughput | 700 Mbps |
|---|---|
| Concurrent sessions | 250,000 |
| New sessions per second | 18,000 |
| Number of interfaces | 8 (10/100 Base‑T or mini‑GBIC) |
| Physical dimensions | 3.3" × 17" × 35" × 11.7" (H × W × D) |
| Weight | 27 lb |
The firewall can process up to 700 Mbps of traffic.
It supports up to 250,000 concurrent sessions.
The device provides eight 10/100 Base‑T or mini‑GBIC interfaces.
