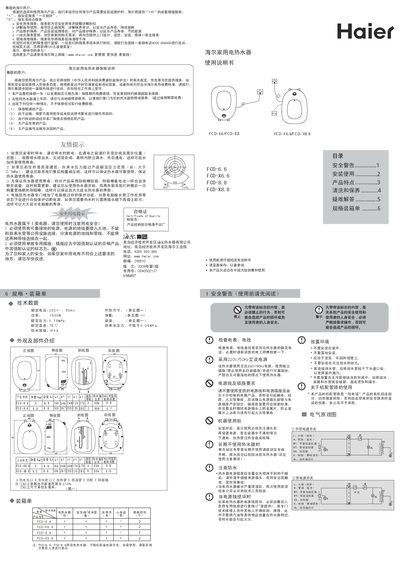

Electric water heater manual, mainly including safety warnings, technical data, appearance and component introduction, packing list, electrical principle diagram, front view, side view, sectional view, rear view, product model, quantity, component name
The manual begins with safety warnings, emphasizing proper grounding, dedicated power sockets, and avoiding installation outdoors. It details the required electrical specifications (220 V / 50 Hz) and installation procedures, including wall mounting, pipe connections, and pressure checks.
Subsequent sections cover first‑time operation, temperature adjustment, regular maintenance such as cleaning the heating element and replacing the anode rod, and a troubleshooting guide that lists common symptoms and their solutions. Warranty information and contact details for Haier service are also provided. This manual is written in Chinese.
| Rated Voltage | 220 V / 50 Hz |
|---|---|
| Power | 1500 W |
| Rated Pressure | 0.7 MPa |
| Rated Temperature | 75 °C |
| Minimum Water Pressure | 0.05 MPa |
| IP Rating | 1PX4 |
Check whether the water supply is stopped or the water pressure is too low, and verify that the water inlet valve is open and the heating element has reached the set temperature.
No. The manual states the heater must be installed indoors, on a solid wall, and not in a location where it can be exposed to water spray.
