ES60H- V1(E) is a gas water heater with features such as scheduled bathing, 3D heating, and heat preservation.

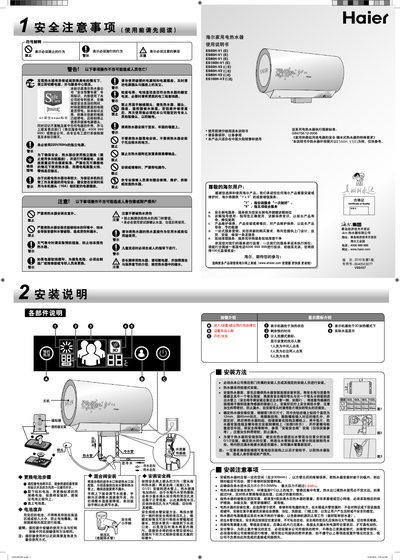

This user manual provides safety warnings, installation steps, and operating instructions for Haier ES series household water heaters. It explains how to mount the unit on a solid wall, connect water and power lines, and configure the remote control.
The guide also covers the different heating modes, regular cleaning, troubleshooting, and warranty information. Technical data such as capacity, dimensions, pressure limits and power ratings are listed for reference. This manual is written in Chinese.
| Capacity | 50 L, 60 L, 80 L, 100 L |
|---|---|
| Dimensions (W×H×D) | 200 mm × 200 mm × 282 mm |
| Water inlet pressure range | 0.05 MPa – 0.8 MPa |
| Maximum heating power | 3000 W (optional 2000 W mode) |
| Secondary heating power | 2000 W |
Immediately cut the power, do not touch any appliance, and contact Haier service at 4006 999 999.
Use a coin to open the battery compartment on the back of the remote, remove the button cell and insert a new cell of the same specification, keeping the positive side up.
No. The heater must be installed on a solid, sturdy interior wall.
Contact Haier after‑sales service for assistance, as the unit is rated up to 0.8 MPa.
