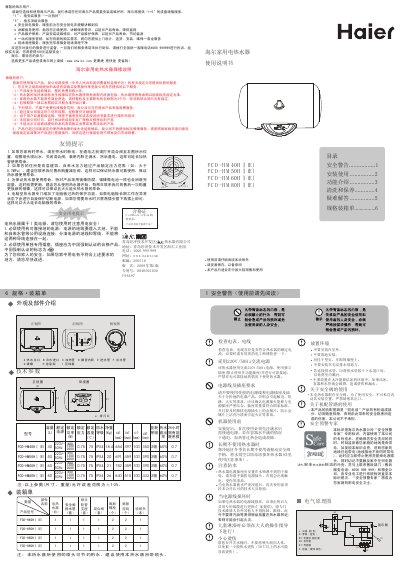

Haier water heater instruction manual, introduces the safety warnings, appearance and component introductions, installation, use, maintenance and repair of the water heater
This manual provides safety warnings, a description of the water heater’s appearance and components, and a complete packing list for the Haier FCD‑HM series household water heaters. It guides users through proper installation, connection of water and power lines, and initial setup before first use.
The document also covers operation procedures, delay heating settings, troubleshooting tips, cleaning and maintenance steps, and warranty information. It includes detailed diagrams of the valve, heating element, and internal parts, as well as specifications for voltage, power, capacity and pressure ratings. This manual is written in Chinese.
| Rated Voltage | 220V/50Hz |
|---|---|
| Rated Power | 800W / 1200W / 2000W |
| Rated Pressure | 0.75 MPa |
| Capacity | 40 L / 50 L / 60 L / 80 L |
Press the delay key; each press increases the delay by 1 hour, displayed as a two‑digit number (00‑23). The machine will start heating after the set number of hours.
Check the safety valve; if water drips from the pressure‑release hole during heating, it is normal. Ensure the valve’s outlet is not blocked and remains vented to the atmosphere.
The magnesium rod should be inspected and replaced roughly every two years to maintain corrosion protection.
