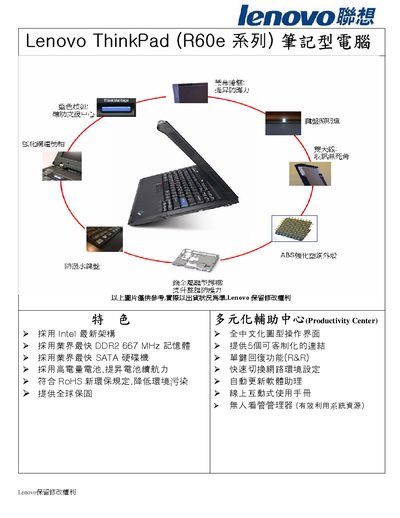

This document describes the features and characteristics of Lenovo ThinkPad (R60e series) laptops, including the use of Intel's latest architecture, the fastest DDR2 667 MHz memory, the fastest SATA hard drive, and high-capacity batteries.
This manual describes the Lenovo ThinkPad R60e notebook, covering its hardware components, pre‑installed software, and warranty information. It includes details on the processor, memory, storage, display, audio, networking, and security features.
The document also lists technical specifications such as CPU type, RAM capacity, hard‑drive options, battery life, dimensions, weight, and supported operating system, helping users understand the capabilities and proper use of the R60e series laptop. This manual is written in Chinese.
| Processor | Intel Celeron M 410 (1.46 GHz) |
|---|---|
| Memory | 512 MB DDR2 (PC2‑5300 667 MHz) up to 2 GB |
| Hard Drive | 40 GB, 60 GB or 80 GB 5400 rpm SATA‑150 |
| Display | 15.1" XGA (1024×768) TFT, anti‑glare |
| Graphics | Intel Graphics Media Accelerator 950 |
| Battery (6‑cell) | Standard runtime ~5.2 hours |
| Network | Gigabit Ethernet, Broadcom BCM5751M, 56K V.92 modem, built‑in Wi‑Fi |
| Weight | 2.8 kg |
It supports Windows XP Home.
The standard 6‑cell battery provides about 5.2 hours of runtime.
Yes, it includes a TPM security chip.
It comes with a one‑year global warranty, and the battery is covered for one year as well.
