ThinkCentre M58e 7298 series is a vertical computer that uses Intel 64-bit dual-core architecture processor, Intel's latest main chipset, DDR2 800 MHz memory, supports SATA 2.0 (300 MB/s) architecture, Gigabit Ethernet network, front-end audio and USB 2.0 sockets. It has a 15-month product cycle, supports all ThinkVantage Technologies, and IBM offers a three-year warranty.

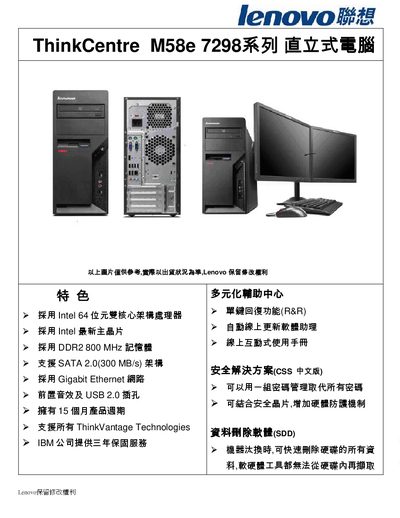

This manual describes the ThinkCentre M58e 7298 series upright desktop, covering its hardware configuration, supported operating systems, and pre‑installed software. It also outlines safety solutions, security features, and warranty terms provided by Lenovo.
Key specifications include an Intel Pentium Dual‑Core E5200 processor, 2 GB DDR2‑800 MHz memory (expandable to 4 GB), a 320 GB 7200 RPM SATA hard drive, Intel G41 chipset with integrated GMA X4500 graphics, and a 280 W universal power supply. Connectivity options feature multiple USB 2.0 ports, Gigabit Ethernet, and audio jacks. This manual is written in Chinese.
| Processor | Intel Pentium Dual‑Core Processor E5200 (2.5 GHz) |
|---|---|
| Hard Drive | 320 GB 7200 RPM SATA 2.0 |
| Chipset | Intel G41 |
| Graphics | Intel GMA X4500 |
| Audio | High Definition audio / ALC662 codec |
| USB Ports | Front 2 × USB 2.0, Rear 4 × USB 2.0 |
| Power Supply | 280 W, 110 V/240 V auto‑switching |
| Dimensions (W × H × D) | 402 mm × 440 mm × 175 mm |
| Weight | 11 kg |
| Warranty | 3 years parts and labor |
The front panel provides two USB 2.0 ports and the rear panel provides four USB 2.0 ports.
Lenovo provides a three‑year warranty covering parts and on‑site labor, with free technical support.
