Trimble® GeoXH™ handheld is an integrated solution for high-precision GIS data collection and asset positioning. It utilizes H-Star™ technology to achieve accuracy ranging from 10 cm to 30 cm, making it suitable for applications in industries such as power, gas, water supply, drainage, and land improvement. The GeoXH handheld combines Trimble GPS receiver with a rugged and durable handheld computer, providing all-day usability and various connectivity options. It is a feature-rich device with a powerful processor, ample storage, and Windows Mobile® v6 operating system. The handheld offers flexibility in obtaining data through wireless LAN, Bluetooth, and external devices. It is designed for field construction, with a built-in battery for all-day operation and a rugged design to withstand harsh environments. Overall, the GeoXH handheld is the ideal solution for high-precision asset management.
The Trimble GeoXH handheld is a high‑precision GIS data‑collection device that uses H‑Star technology to achieve sub‑foot (≈30 cm) post‑processed accuracy. It runs Windows Mobile 5.0 for Pocket PC on a 416 MHz Intel X‑Scale processor and includes 512 MB of flash storage, Bluetooth, Wi‑Fi, and a rugged design for all‑day field use.

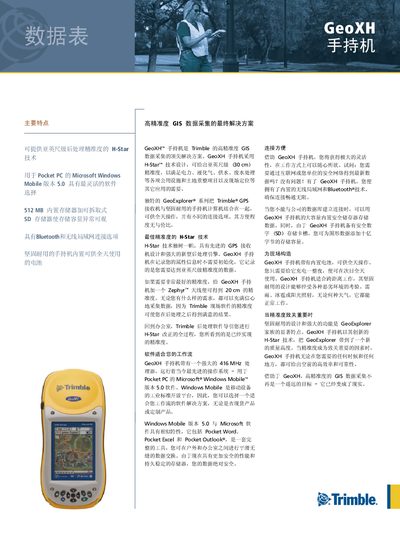

The manual provides system specifications, GPS capabilities, software tools, accessory options, and optional performance upgrades such as Zephyr antennas for 20 cm accuracy. It also covers connectivity options, power management, and environmental ratings. This manual is written in Chinese.
| Processor | 416 MHz Intel X‑Scale |
|---|---|
| Flash Storage | 512 MB non‑volatile |
| RAM | 64 MB |
| Battery | 6800 mAh internal rechargeable |
| Display | 240 × 320 pixel TFT color |
| Operating Temperature | -10 °C to +50 °C |
| Weight | 0.78 kg (with battery) |
| Connectivity | Bluetooth and 802.11b Wi‑Fi |
It runs Microsoft Windows Mobile version 5.0 for Pocket PC.
It has built‑in Bluetooth and 802.11b Wi‑Fi, and can also use USB or an optional Ethernet module.
The device provides sub‑foot (≈30 cm) post‑processed accuracy, and with the optional Zephyr antenna can reach about 20 cm.
