The GeoXH handheld is Trimble's top of the line solution for high-precision GIS data collection. The GeoXH handheld is designed with H-Star technology to deliver sub-inch (30 cm) accuracy to meet the needs of utilities and land surveying projects as well as other applications that require field positioning.
The GeoXH handheld machine is a high‑precision GIS data‑collection device from Trimble. It uses H‑Star technology to deliver post‑processed accuracy of about 30 cm and real‑time accuracy of roughly one meter, suitable for utilities, land‑reclamation, and field positioning tasks.

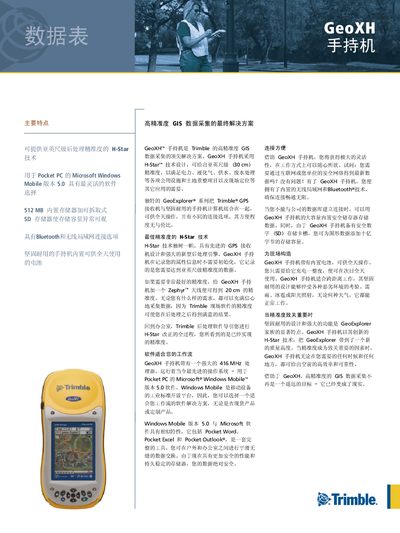

The device runs Microsoft Windows Mobile 5.0 for Pocket PC on a 416 MHz Intel X‑Scale processor, with 64 MB RAM and 512 MB internal flash storage. It includes Bluetooth, 802.11b Wi‑Fi, a built‑in 6800 mAh Li‑ion battery, and an outdoor‑grade TFT display (240 × 320 px, 65,536 colors, backlit). This manual is written in Chinese.
| Processor | 416 MHz Intel X‑Scale |
|---|---|
| RAM | 64 MB |
| Internal Flash | 512 MB |
| Battery | 6800 mAh Li‑ion (rechargeable) |
| Weight (with battery) | 0.78 kg |
| Dimensions | 21.5 cm × 99 cm × 77 cm |
| Operating Temperature | -10 °C to +50 °C |
| Ingress Protection | IP54 |
| Wireless Connectivity | Bluetooth and 802.11b Wi‑Fi |
| Display | 240 × 320 px TFT, 65,536 colors, backlit |
| Operating System | Microsoft Windows Mobile 5.0 for Pocket PC |
| Post‑processed Accuracy | ≈30 cm (≈1 ft) |
| Real‑time Accuracy | ≈1 m (≈3 ft) |
It runs Microsoft Windows Mobile version 5.0 for Pocket PC.
The 6800 mAh rechargeable lithium battery can be charged overnight and provides all‑day operation.
The device includes Bluetooth and 802.11b wireless LAN, with optional USB and serial adapters.
Using H‑Star technology it delivers post‑processed accuracy of about 30 cm and real‑time accuracy of about one meter.
