Haier air conditioner user manual, introduces the use method, precautions and warranty of the air conditioner

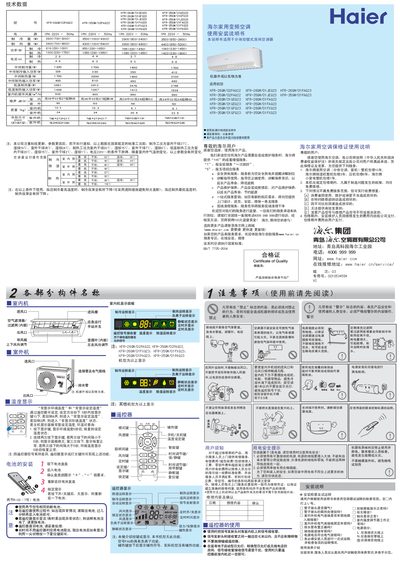

This manual provides step‑by‑step installation instructions for the Haier KFR‑26GW and KFR‑35GW split‑type air‑conditioners, including wiring, indoor‑outdoor unit connection, and drainage setup. Safety precautions, grounding requirements, and recommended tools are also covered.
Technical specifications such as cooling/heating capacity, power consumption, airflow, and operating voltage are listed, followed by operating instructions for the remote controller, smart functions, timer settings, and maintenance procedures like filter cleaning and refrigerant handling. This manual is written in Chinese.
| Cooling capacity (GW) | 2600 (730‑3200) for KFR‑26GW, 3500 (1000‑4300) for KFR‑35GW |
|---|---|
| Heating capacity (GW) | 3400 (700‑4900) for KFR‑26GW, 4300 (1000‑5400) for KFR‑35GW |
| Power consumption (W) – cooling | 616 (230‑1000) for KFR‑26GW, 950 (230‑1650) for KFR‑35GW |
| Indoor unit airflow (m³/h) | 500 for KFR‑26GW, 600 for KFR‑35GW |
| Operating voltage | 220 V, 50 Hz |
Use a grounded power outlet, connect the live (L) and neutral (N) wires correctly, and ensure the grounding wire is buried in the earth.
