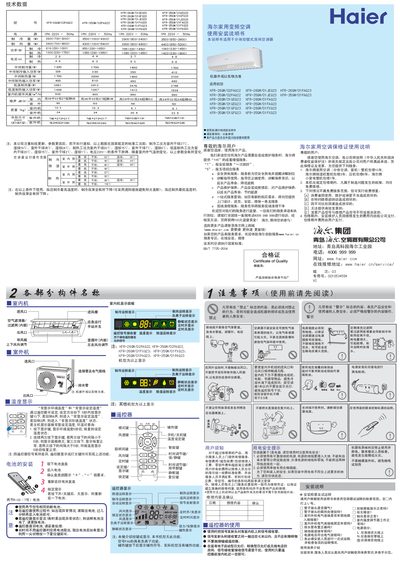

This document is Haier air conditioner user manual, mainly introduces the use method, precautions, warranty scope and service commitment of air conditioner.
This guide provides step‑by‑step instructions for installing and commissioning the Haier KFR‑26GW and KFR‑35GW split‑type inverter air‑conditioners. It includes technical specifications, safety warnings, wiring diagrams, and detailed descriptions of the remote controller functions such as smart wind, timer, and deodorisation modes.
The manual also explains how to configure the thermostat, set timer and smart functions, perform routine cleaning, and troubleshoot common issues. Safety precautions, warranty information, and recommended maintenance procedures are included to ensure reliable long‑term operation. This manual is written in Chinese.
| 制冷量 (GW) | 2600‑3500 |
|---|---|
| 制热量 (GW) | 3400‑4400 |
| 功率 (W) 制冷 | 616‑1060 |
| 室内机循环风量 (m³/h) | 500‑600 |
Press the timer key; each press cycles through timer modes (timer on/off, timer start, timer stop). Confirm with the set key.
When the smart function is enabled, the wind speed automatically adjusts according to the temperature difference between the indoor and set temperatures.
Press the “除甲醛” key on the remote; the function activates automatically and may also turn on the negative ion feature.
The unit must be connected to a reliable grounded power source; the ground wire must be buried in the earth and not shared with other circuits.
